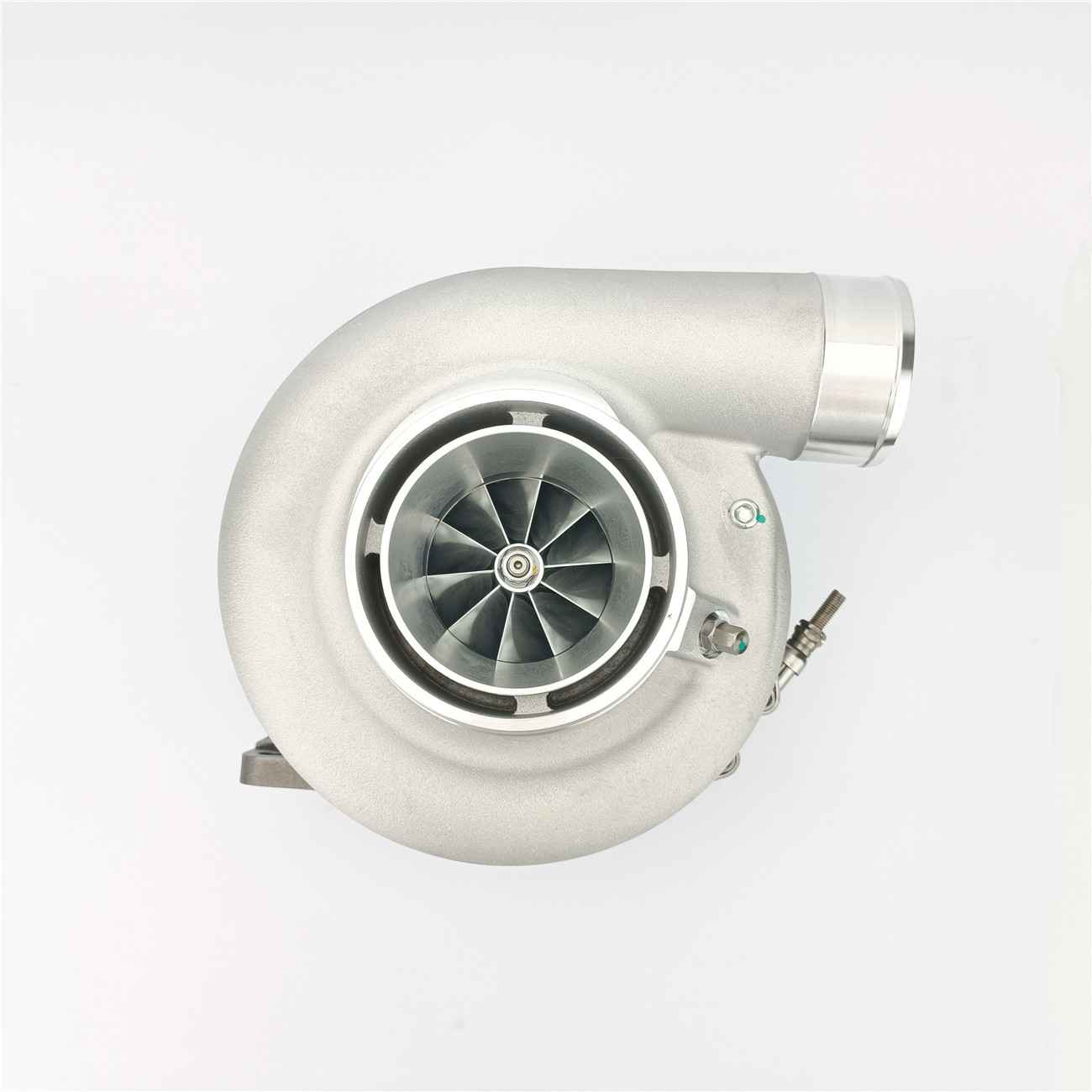

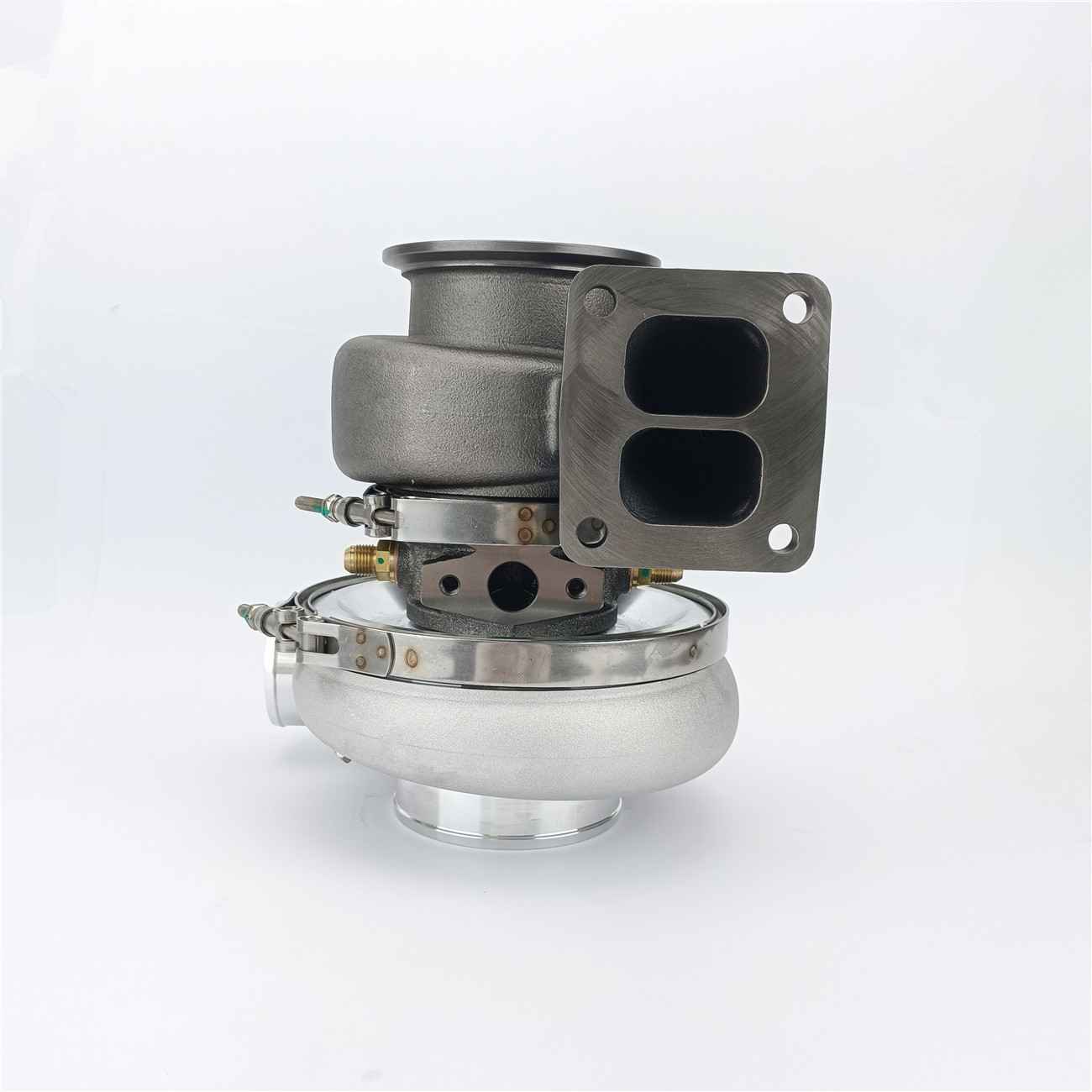

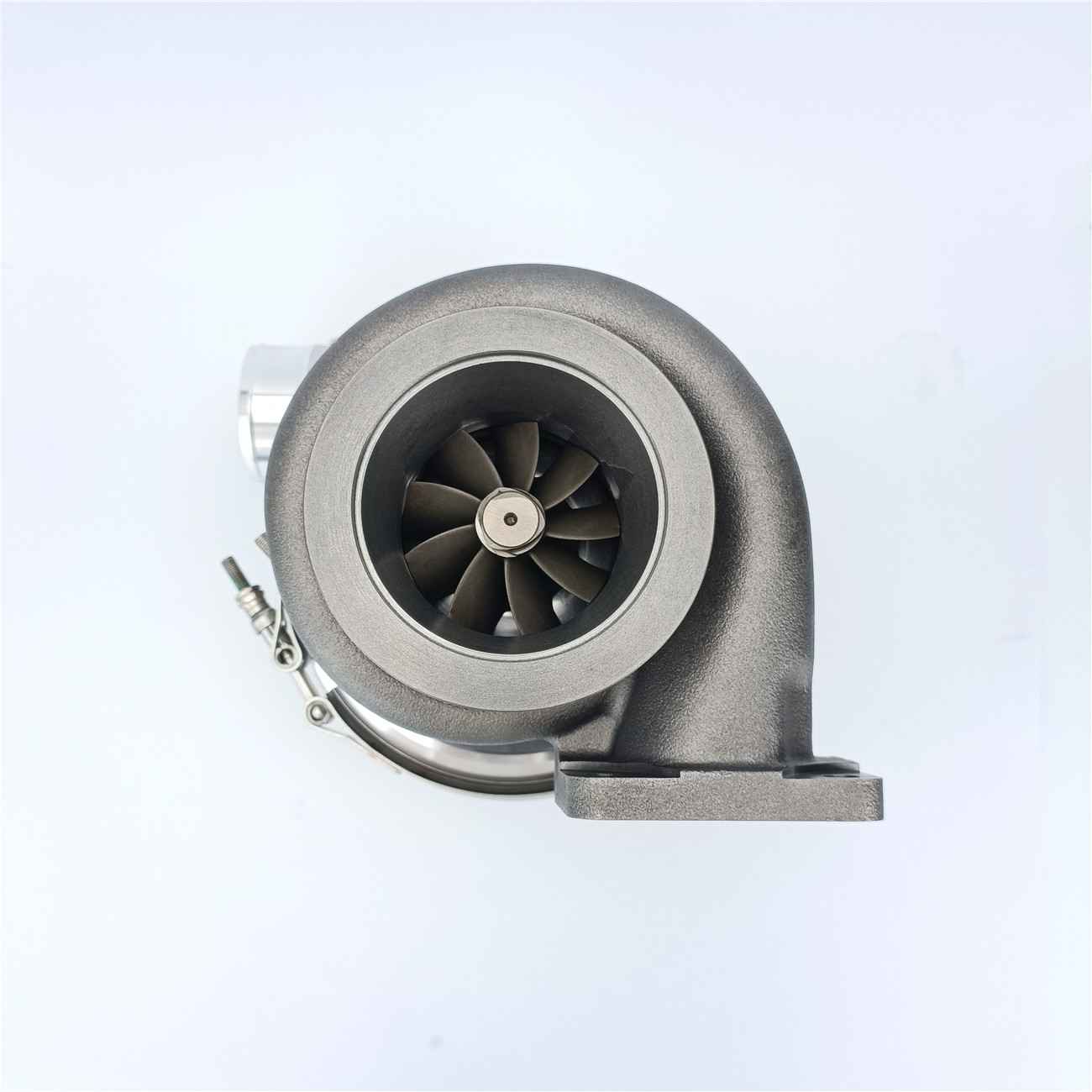

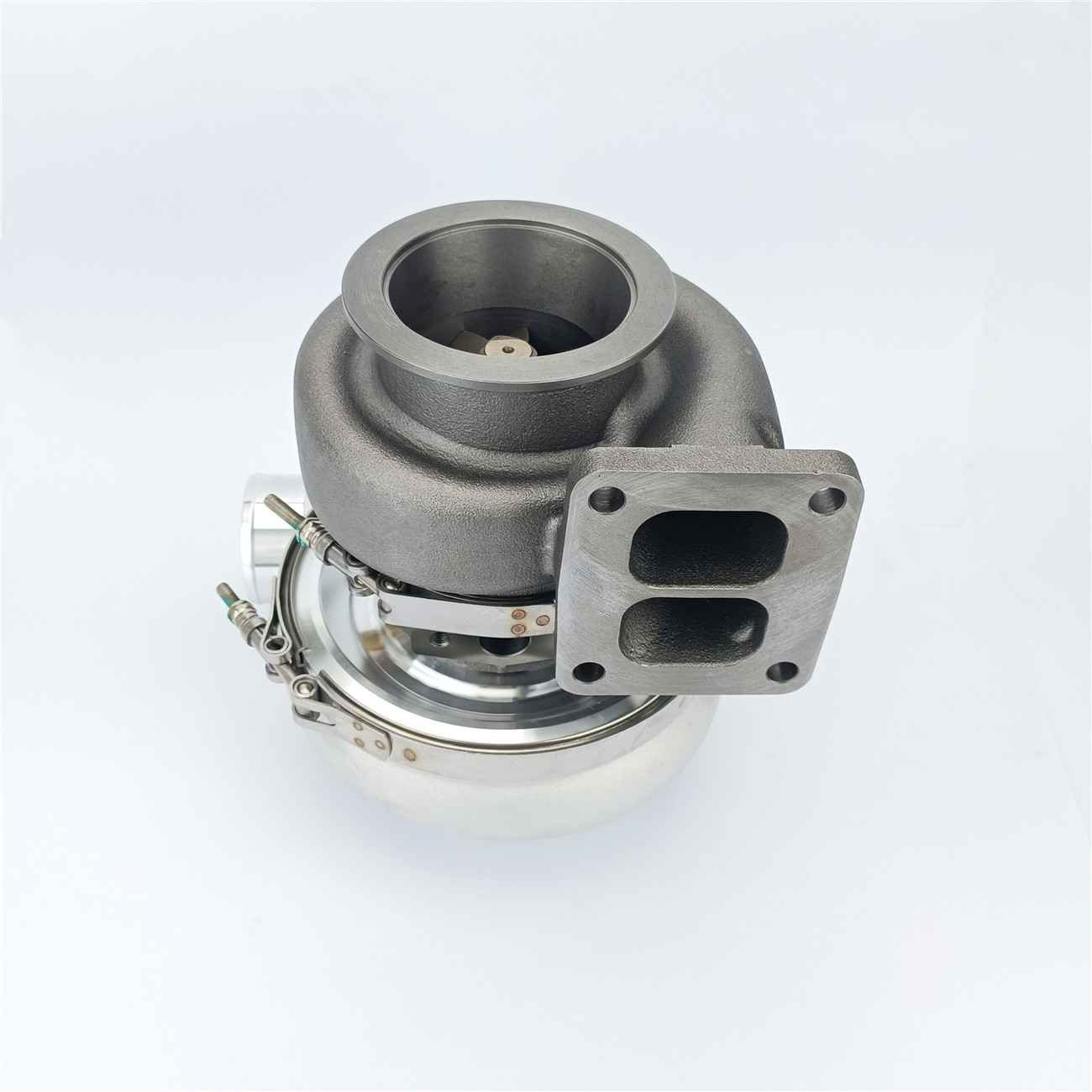

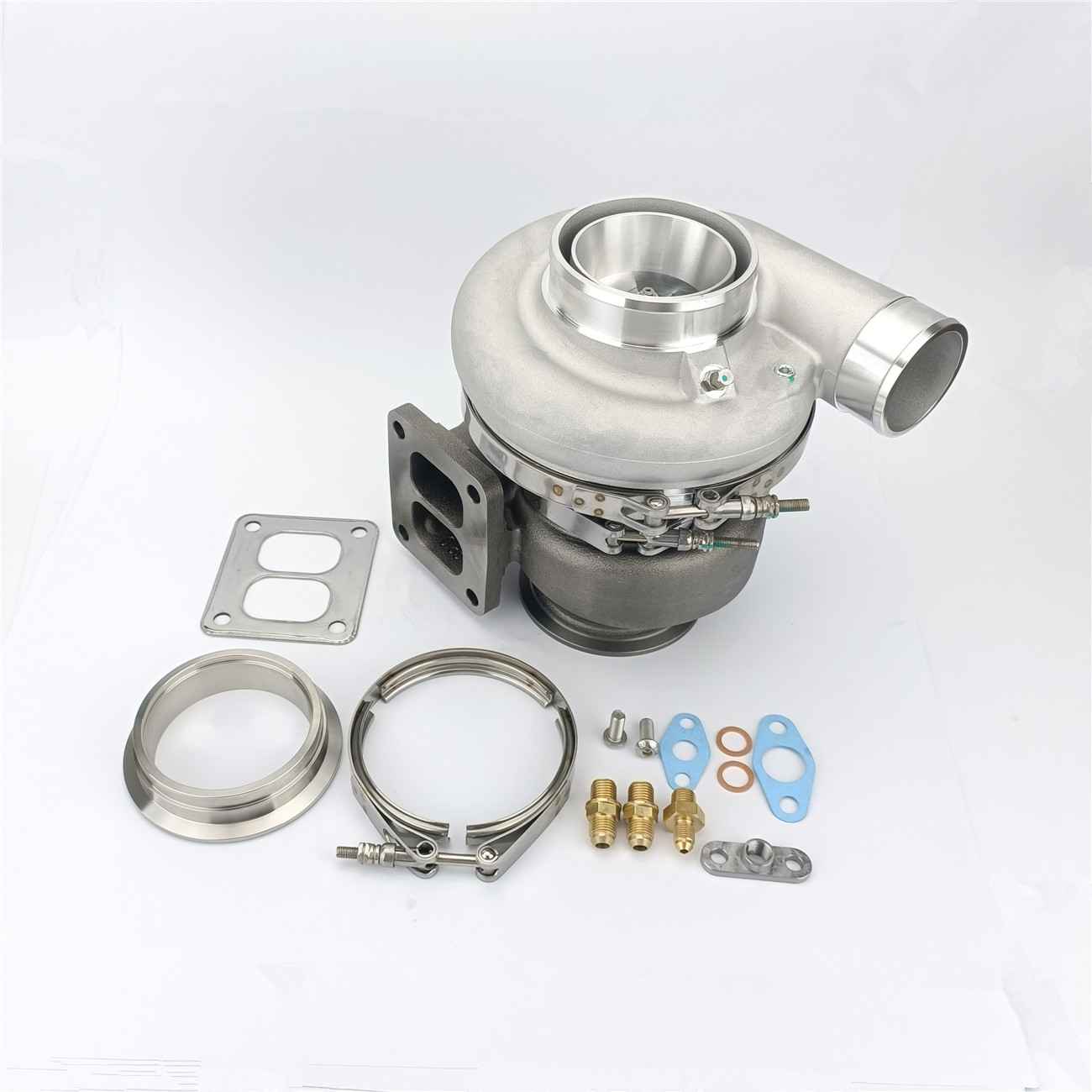

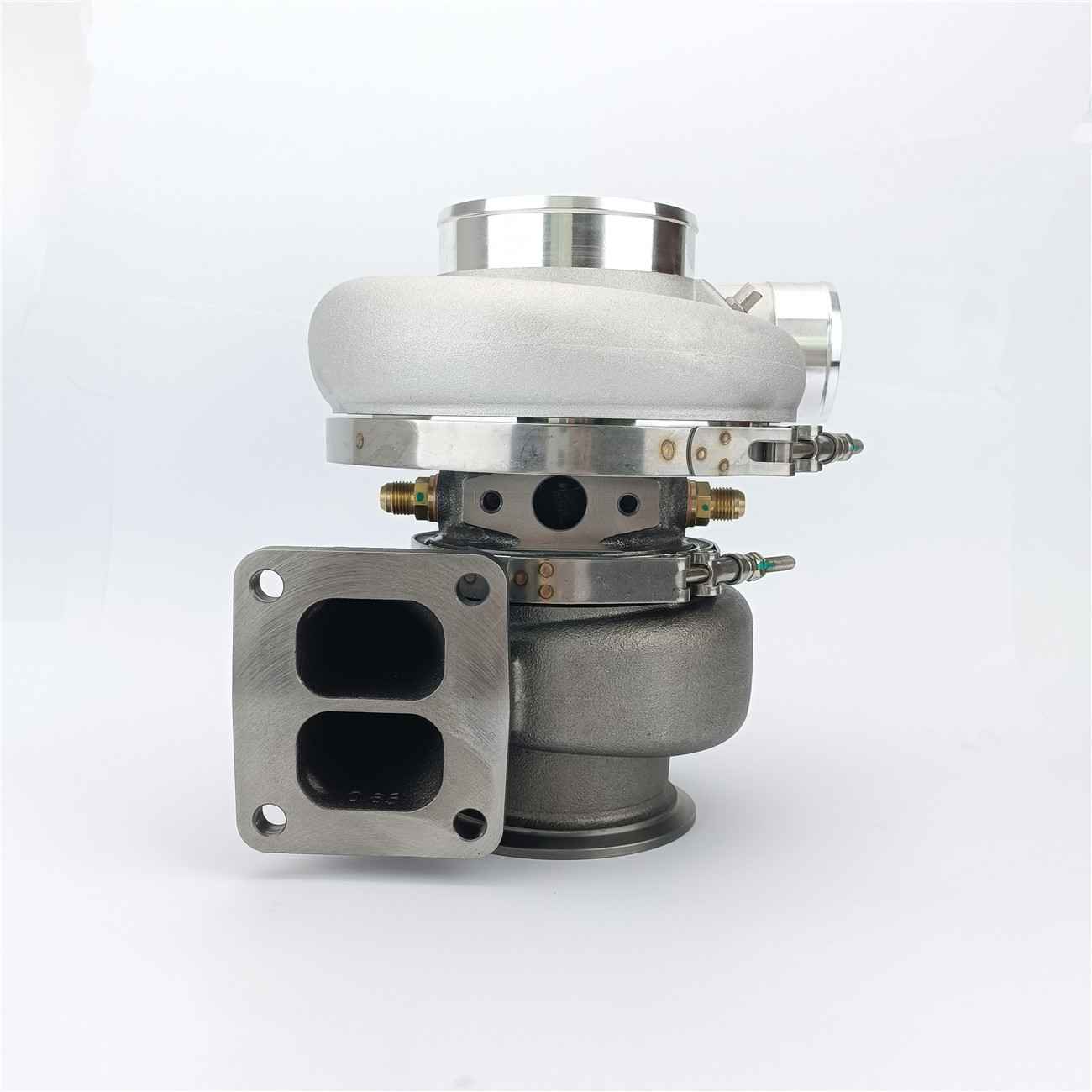

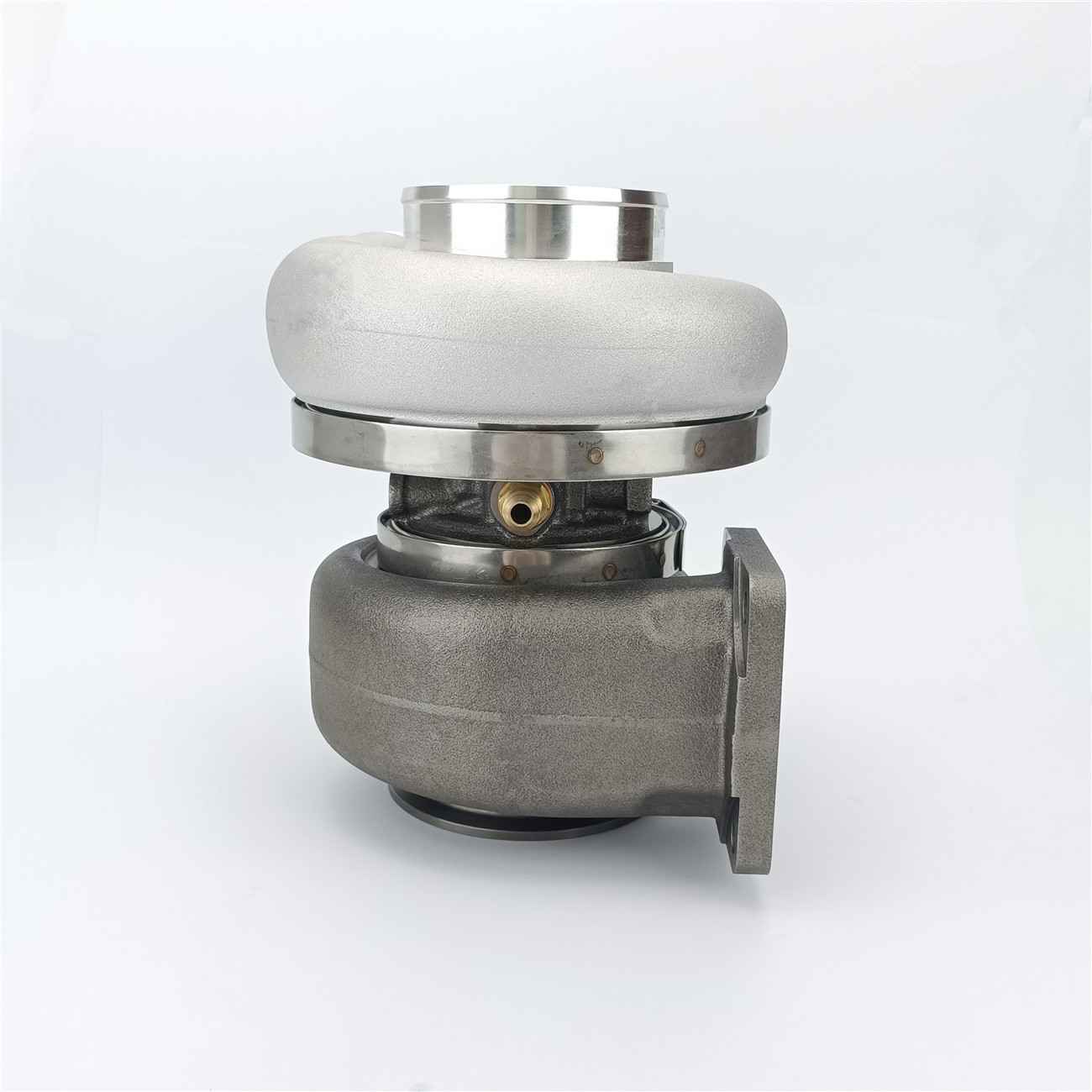

G40-900
860777-5003S 757707-0027 757707-0028 757707-0029 757707-0030 757707-0032 757707-0033 757707-0034 757707-0035
| Quantity: | |
|---|---|
G40-900
MS-TECH Turbo
860777-5003S
other
other
other
other
other
other
other
other
other
G40-900 | Compressor | Turbine | |||||
Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
HP: 500-900 Disp: 2.0L-6.0L | 62mm | 88mm | 51 | 0.80 | 77mm | 70mm | 84 |
Supercore | PN | ||||||
Standard Rotation | 860777-5003S | ||||||
Turbine Kits: G40 | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
Free Float Turbine Housing | 757707-0027 | 0.85 | V-Band | V-Band | Free Float | N | |
757707-0028 | 0.95 | V-Band | V-Band | Free Float | N | ||
757707-0029 | 1.06 | V-Band | V-Band | Free Float | N | ||
757707-0030 | 1.19 | V-Band | V-Band | Free Float | N | ||
757707-0032 | 0.85 | T4 | V-Band | Free Float | Y | ||
757707-0033 | 0.95 | T4 | V-Band | Free Float | Y | ||
757707-0034 | 1.06 | T4 | V-Band | Free Float | Y | ||
757707-0035 | 1.19 | T4 | V-Band | Free Float | Y | ||
G40-900 | Compressor | Turbine | |||||
Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
HP: 500-900 Disp: 2.0L-6.0L | 62mm | 88mm | 51 | 0.80 | 77mm | 70mm | 84 |
Supercore | PN | ||||||
Standard Rotation | 860777-5003S | ||||||
Turbine Kits: G40 | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
Free Float Turbine Housing | 757707-0027 | 0.85 | V-Band | V-Band | Free Float | N | |
757707-0028 | 0.95 | V-Band | V-Band | Free Float | N | ||
757707-0029 | 1.06 | V-Band | V-Band | Free Float | N | ||
757707-0030 | 1.19 | V-Band | V-Band | Free Float | N | ||
757707-0032 | 0.85 | T4 | V-Band | Free Float | Y | ||
757707-0033 | 0.95 | T4 | V-Band | Free Float | Y | ||
757707-0034 | 1.06 | T4 | V-Band | Free Float | Y | ||
757707-0035 | 1.19 | T4 | V-Band | Free Float | Y | ||
