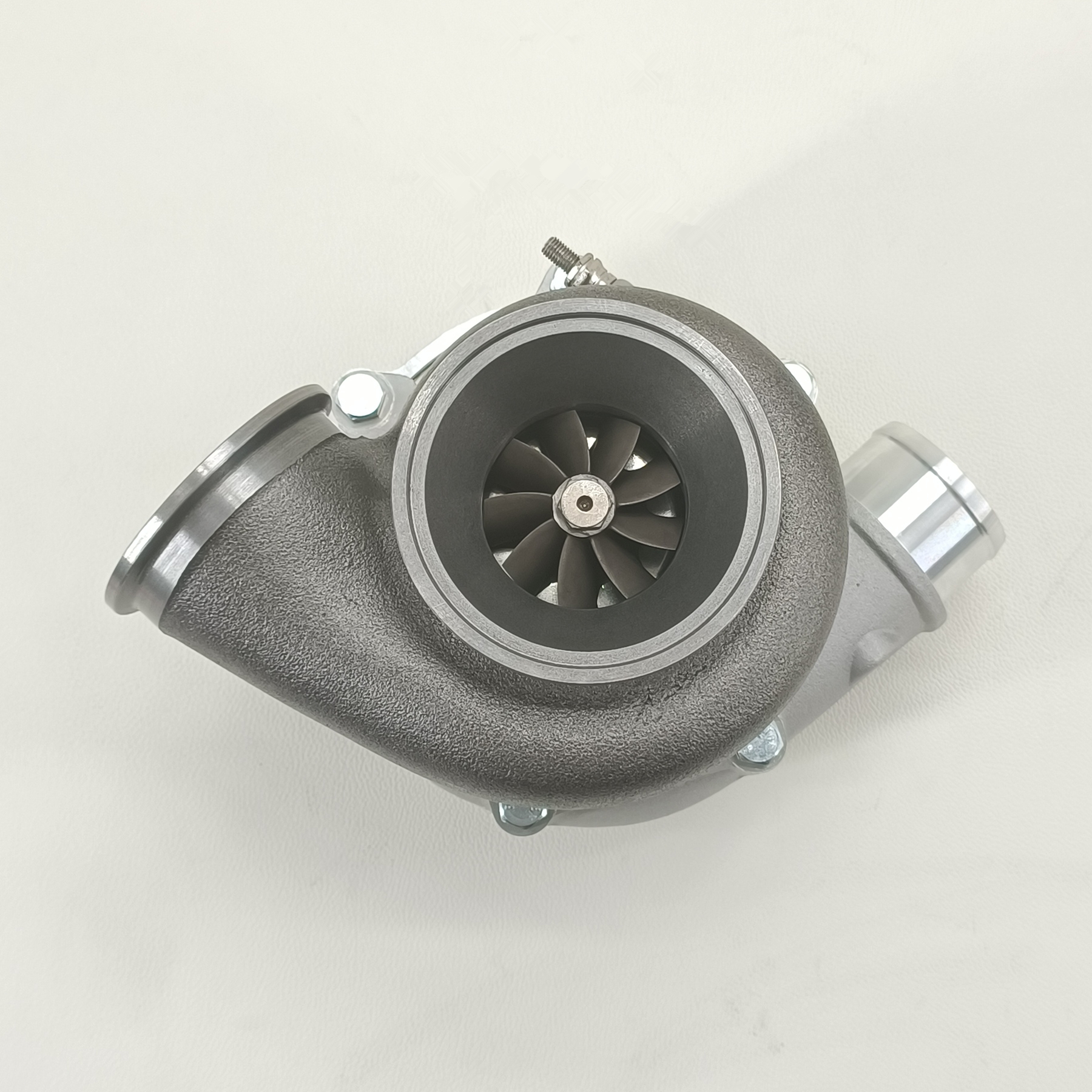

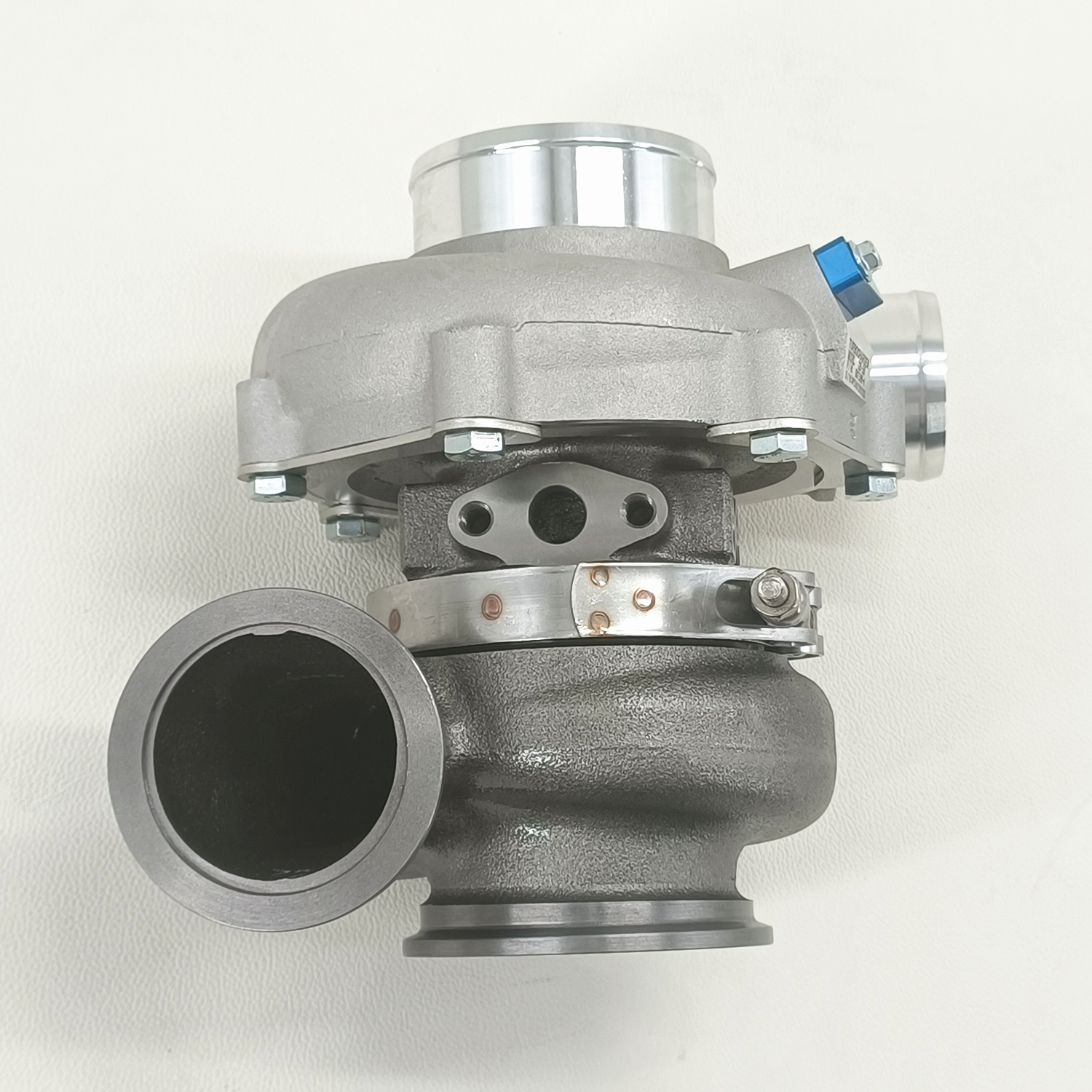

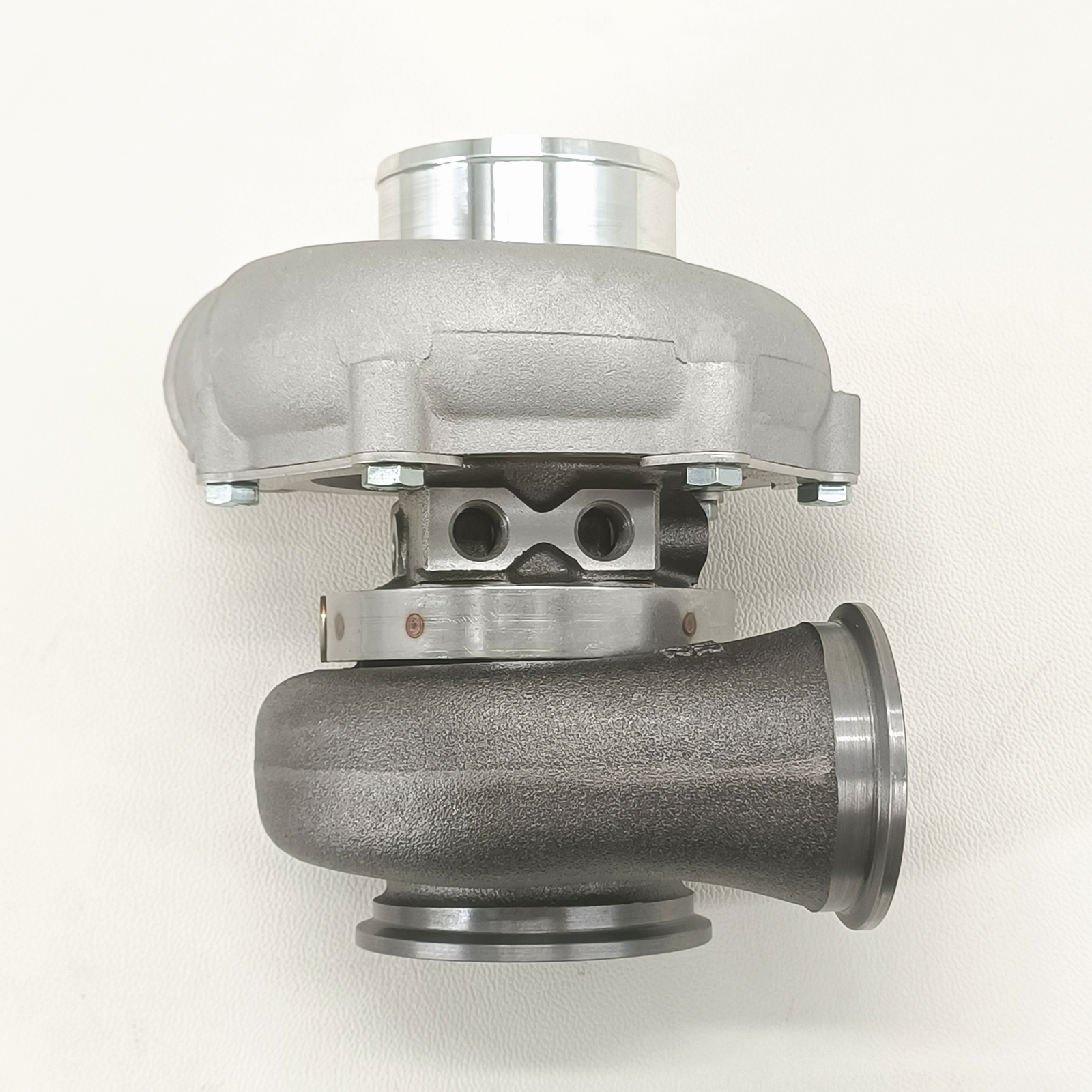

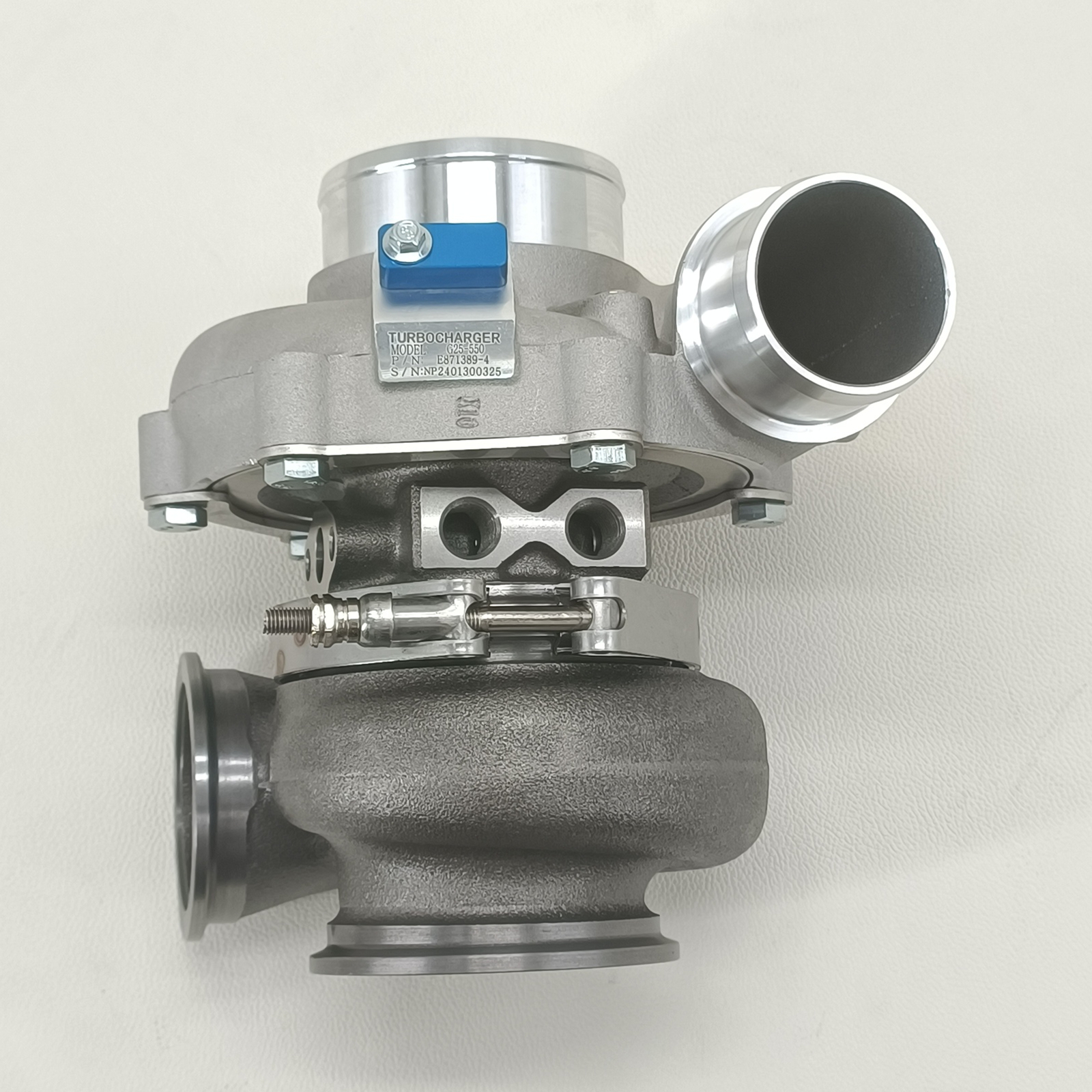

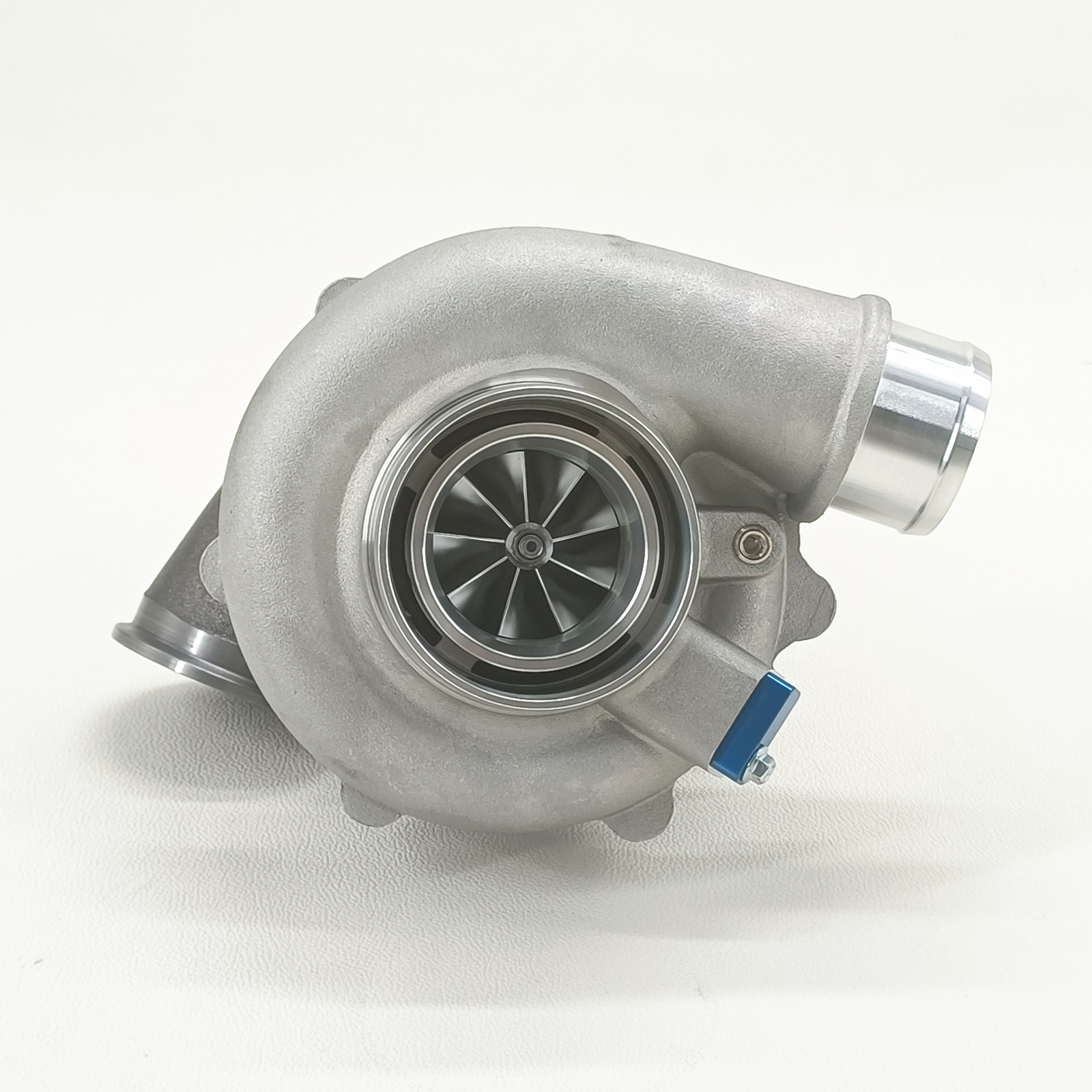

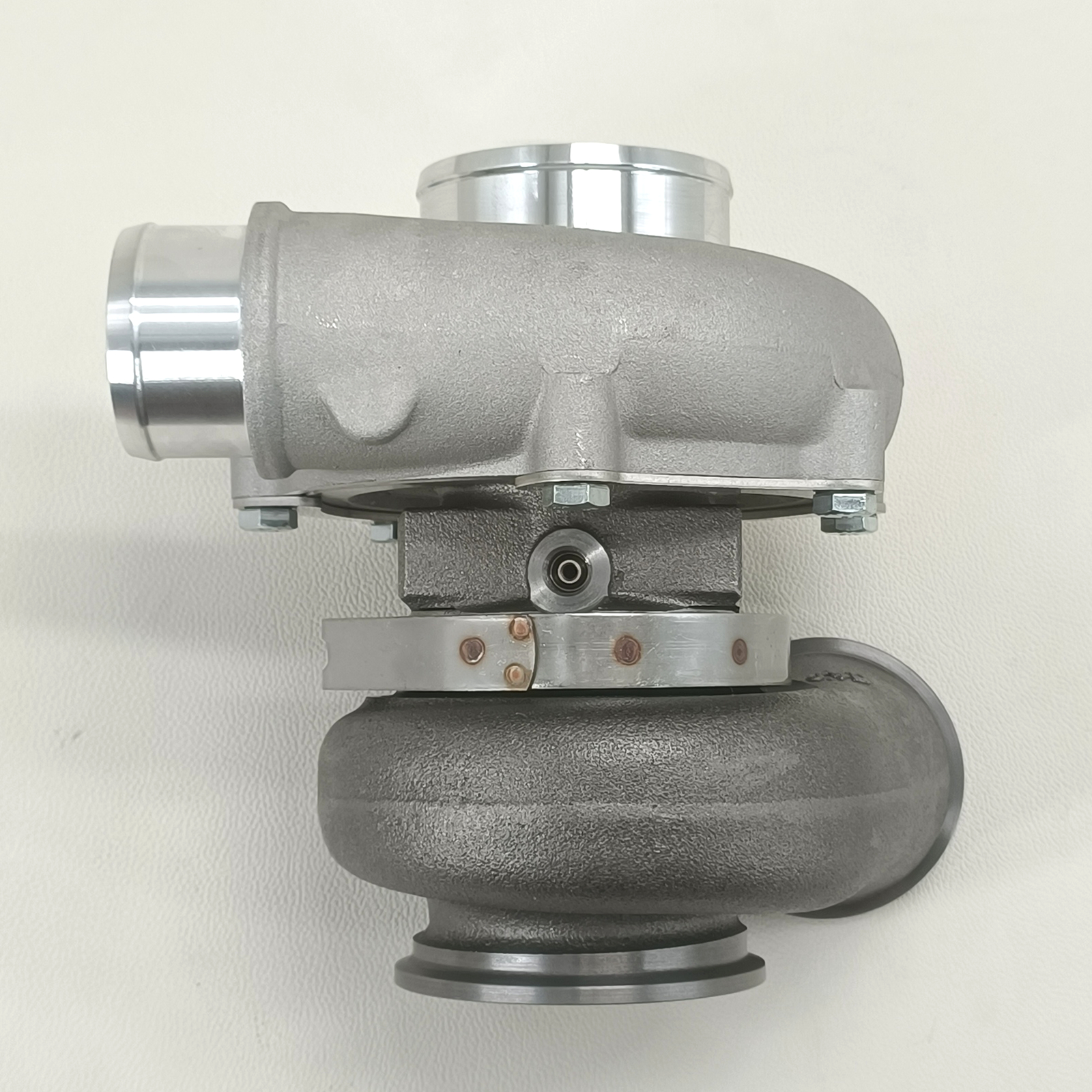

MS-TECH Turbo G-Series Ball Bearing Racing G25-550 G25-660 Turbocharger 871389-0004 for Universal Racing Car

Share to:

MS-TECH Turbo G-Series Ball Bearing Racing G25-550 G25-660 Turbocharger 871389-0004 for Universal Racing Car

Model G25-660
Part No. 871389-0004
Compressor details a/r 0.70 anti-surge
air inlet 3" air outlet 2"
inducer 54.34mm exducer 67.40mm
Compressor Trim: 65
Turbine details a/r .72
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
inducer 53.85mm exducer 49.36mm
Turbine Trim: 84
Car Application for G-Series G25-660
for G25-660(A/R.72)

Availability:

Quantity:



Inquire Add to Basket

Model:
G25-550/660
Brand:
MS-TECH Turbo
Code:
871388-5001S
Body Material:
other
Certification:
other
ETS Component:
other
ETS Type:
other
After-sales Service:
other
Condition:
other
Axle Number:
other
Application:
racing car
Material:
other
Car Model:
racing car
Engine Type:
other
Warranty:
6 months
Type:
other
Electric Turbocharger Type:
other
Power:
550-660 hp
Adjusted Form:
Regulated Type
Work Temperature:
Normal Temperature
Customized:
YES
Transport Package:
carton
Origin:
China
Specification:
50*50*50
Discharge Standard:
other
Brand:
MS-TECH
Working Type:
Other
Pressure:
Other

Product Description

Model	G25-660
Part No.	871389-0004
Compressor details	a/r 0.70 anti-surge air inlet 3" air outlet 2" inducer 54.34mm exducer 67.40mm Compressor Trim: 65
Turbine details	a/r .72 Turbine Housing Inlet: 3 Inch O.D. V-Band Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band inducer 53.85mm exducer 49.36mm Turbine Trim: 84
Car Application	for G-Series G25-660 for G25-660(A/R.72)
